Product Description
This USB printer adapter with the DB25 parallel connector easily connects a printer with parallel port to the USB port of your computer.
Automatic installation of the adapter drivers that are part of the Windows, Mac OS, or Linux operating systems. This will create a print support via USB bus also for LPT-enabled printers.
Bi-directional communication allows you to check the status of your printer from your computer.
Seamless compatibility thanks to the original Prolific chip (beware of adapters with non-original chips).
High quality double-shielded USB cable for stable data transmissions without interference.
Very durable adapter body suitable even for industrial applications.
Input:
• USB 2.0 full speed 12 Mbit/s interface, USB 1.1 backward compatibility.
• Connecting USB 2.0 port with Type A male connector on a 1.5 m long cable permanently attached to the adapter.
• Satisfies the USB Device Class definition for Printing Devices v1.0.
Output:
• 1x 1284 Type A port with DB25 female connector integrated inside the adapter body.
• Complies with the IEEE1284-1994 specification for Bi-Directional Parallel Peripheral Interface.
• Full support for two-way communication between a PC and printer.
• Supports all IEEE1284 compatible printers, MFPs and other IEEE1284 compatible peripherals.
Other features:
• Full Plug and Play support.
• Adapter power supply via USB (bus power) - no auxiliary power supply required.

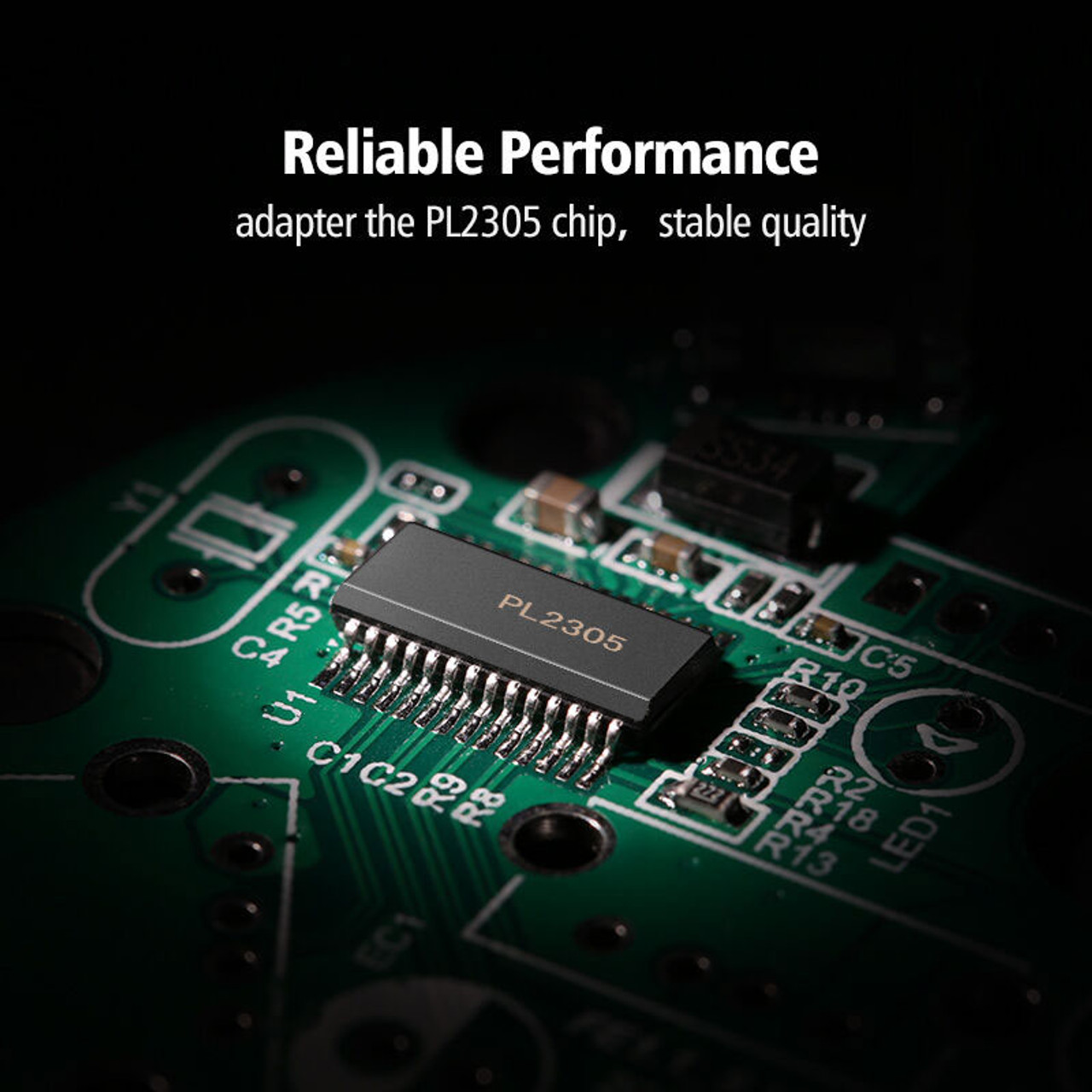

• Original Prolific PL2305 chipset is used.
• Adapter body dimensions 56 x 58 x 18 mm, cable length 1.5 m.
• Adapter weight 105 g (including cable).
Supported operating systems:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS 9.x, Mac OS X 10.x and higher, Linux with kernel 2.4.x and above.
• Note: Drivers are included with supported operating systems and are installed completely automatically. A printing support is created via the USB bus, but does not replace a fully-fledged parallel port. The user only installs drivers for the connected printer, if necessary.
Package contains:
• USB parallel printer adapter with a permanently connected USB cable 1.5 m long,
• the printed manual is not included, the user guide is available for download at the manufacturer's website,
• packed in a solid, sealed foil bag with print.
